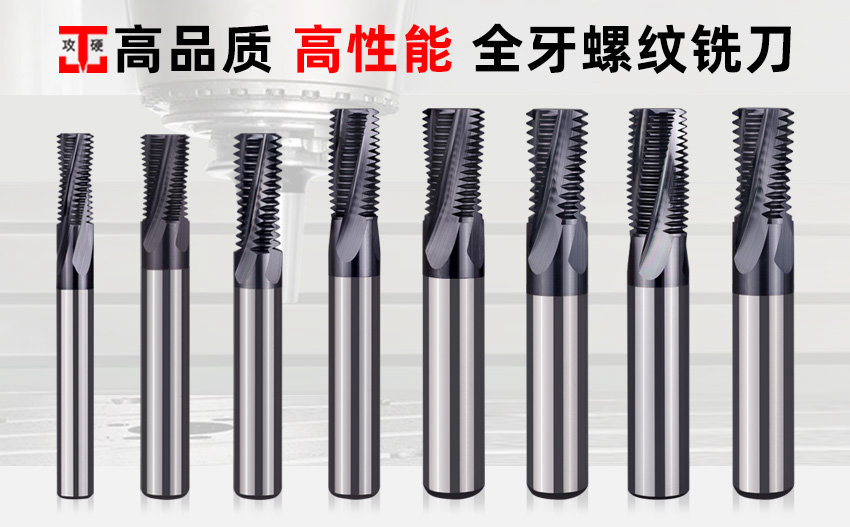

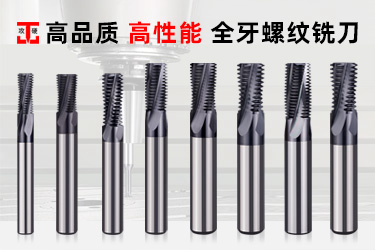

鎢鋼全牙螺紋銑刀
| 55度鎢鋼全牙螺紋銑刀產品信息 | |||
| 品牌 | 攻硬 | 材質 | 優質鎢鋼 |
| 加工材料 | 銅、鋁、鑄鐵、不銹鋼、合金鋼、工具鋼、調質鋼、鈦合金、模具鋼等55度以下材料 | ||
| 優勢特點 | 全磨制圓弧刃，刃口鋒利，高光潔度，耐磨性強 | ||
| 55度鎢鋼全牙螺紋銑刀規格參數表 | ||||||
 | ||||||

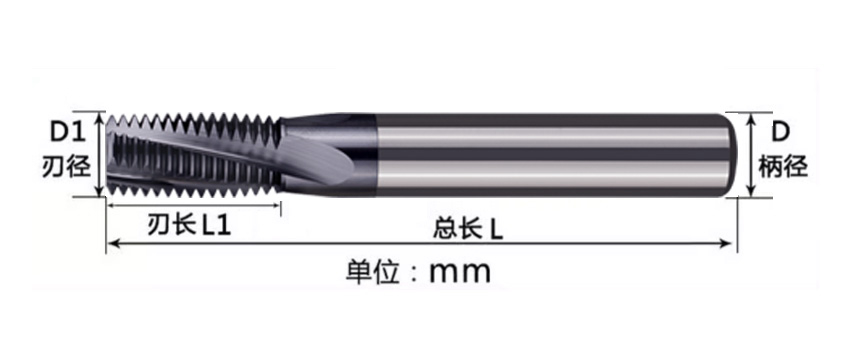

| 螺紋 | 牙距 | 刃徑 | 刃長 | 柄徑 | 總長 | 刃數 |
| M3 | 0.5 | 2.35 | 6.0 | 4 | 50 | 4 |
| M4 | 0.7 | 3.15 | 8.0 | 4 | 50 | 4 |
| M5 | 0.5 | 4.0 | 10 | 4 | 50 | 3 |
| M5 | 0.75 | 4.0 | 10 | 4 | 50 | 3 |
| M5 | 0.8 | 4.0 | 10 | 4 | 50 | 4 |
| M6 | 0.75 | 4.8 | 12 | 6 | 60 | 3 |
| M6 | 1.0 | 4.8 | 12 | 6 | 60 | 4 |
| M8 | 0.5 | 6.0 | 16 | 6 | 60 | 3 |
| M8 | 0.75 | 6.0 | 16 | 6 | 60 | 3 |
| M8 | 1.0 | 6.0 | 16 | 6 | 60 | 3 |
| M8 | 1.25 | 6.0 | 16 | 6 | 60 | 4 |
| M10 | 1.0 | 8.0 | 20 | 8 | 60 | 4 |
| M10 | 1.25 | 8.0 | 20 | 8 | 60 | 4 |
| M10 | 1.5 | 8.0 | 20 | 8 | 60 | 4 |
| M12 | 0.5 | 10 | 24 | 10 | 75 | 4 |
| M12 | 0.75 | 10 | 24 | 10 | 75 | 4 |
| M12 | 1.0 | 10 | 24 | 10 | 75 | 4 |
| M12 | 1.5 | 10 | 24 | 10 | 75 | 4 |
| M12 | 1.75 | 10 | 24 | 10 | 75 | 4 |
| M14 | 1.0 | 12 | 28 | 12 | 75 | 4 |
| M14 | 1.5 | 12 | 28 | 12 | 75 | 4 |
| M14 | 2.0 | 11.6 | 28 | 12 | 75 | 4 |
| M16 | 1.5 | 14 | 32 | 14 | 100 | 4 |
| M16 | 2.0 | 13 | 32 | 14 | 100 | 4 |
| M18 | 2.5 | 14.8 | 38 | 16 | 100 | 4 |
| M20 | 1.5 | 16 | 38 | 16 | 100 | 4 |
| M24 | 3.0 | 16 | 42 | 16 | 100 | 4 |
